Round Tube - Image 1

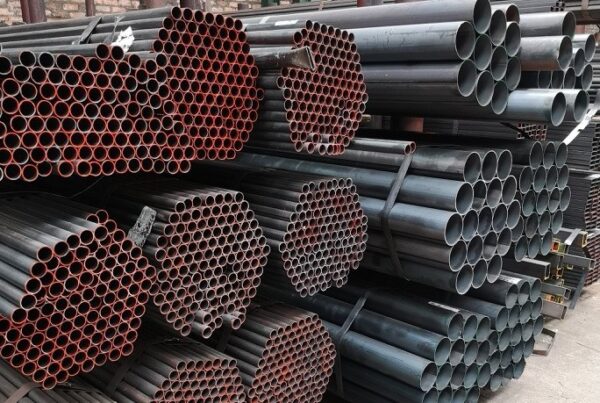

Round Tube

Square Tube
0 out of 5

R0,00

SKU: N/A Categories: ,
Add to quote

Description

Outside diameter

(mm)

 Wall thickness (mm)
1.6 2.0 2.5 3.0 3.5 4.0 4.5 5.0 6.0
16.0 0.564
19.1 0.689 0.841
21.4 0.783 0.959 1.17 1.36
25.4 0.939 1.15 1.41
26.9 1.00 1.23 1.51 1.78
32.0 1.19 1.47 1.80 2.13
34.1 1.28 1.59 1.95 2.30 2.64 2.97
38.1 1.44 1.78 2.20 2.60 2.99
42.8 1.63 2.02 2.49 2.95 3.39 3.83
48.5 1.85 2.29 2.83 3.36 3.88 4.38 4.88
50.8 1.91 2.37 2.93 3.48 4.08 4.62
57.1 2.19 2.72 3.37 4.01 4.63 5.24
60.3 2.32 2.88 3.57 4.24 4.91 5.56 6.20
63.5 2.44 3.03 3.76 4.48 5.18 5.87 6.55
76.2 2.94 3.66 4.55 5.42 6.28 7.12 7.96 8.78 10.39
88.9 3.45 4.29 5.33 6.36 7.37 8.38 9.37 10.35 12.27
101.6 3.95 4.91 6.11 7.30 8.47 9.63 10.78 11.91 14.15
114.3 5.54 6.89 8.24 9.57 10.88 12.19 13.48 16.03
127.0 6.17 7.68 9.18 10.66 12.14 13.60 15.05 17.91
139.7 10.12 11.76 13.39 15.01 16.61 19.79
152.4 11.06 12.85 14.64 16.41 18.18 21.67
165.1 12.00 13.95 15.89 17.83 19.74 23.55
177.8 12.93 15.05 17.07 19.15 21.31 25.42
193.7 16.42 21.00 27.78
219.1 18.60 23.81 31.52

Colour code relating to the grade of steel

SAE 1008 (Si less than 0.03)
SABS 1431  S355

Additional information

Size

15.8, 19.1, 21.4, 25.4, 26.9, 32.0, 34.1, 38.1, 42.8, 48.5, 50.8, 57.1, 60.3, 63.5, 76.2, 88.9, 101.6, 114.3, 127.0, 139.7, 152.4, 165.1, 177.8, 193.7, 219.1
Thickness

1.6mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm
