Flat Bar - Image 1

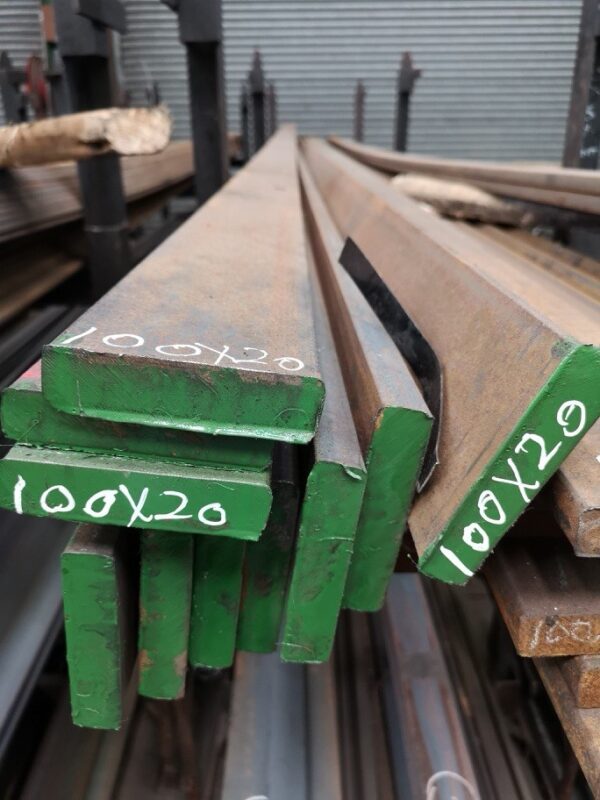

Flat Bar

Square Bar
Angle Iron
0 out of 5

Price range: R0,00 through R1 677,39

Stock range:

20x3mm through to 150x16mm

Used for:

  • General Steelwork
  • Frames
  • Gate Tracks
  • Lugs

Standard lengths 6.0m

SKU: N/A Category:
Add to quote

Description

Width (mm) Thickness (mm)
2.00 3.00 4.5 6.00 8.00 10.00 12.0
20 0.482 0.707 0.942 1.256 1.57
25 0.603 0.883 1.18 1.57 1.96
30 0.724 1.06 1.41 1.88
40 0.965 1.41 1.88 2.51 3.14 3.77
50 1.96 2.36 3.14 3.92 4.71
60 2.83 3.77 4.71
65 3.06 4.08 5.10 6.12
70 3.30 4.40 5.50
80 3.77 5.02 6.28 7.54
90 4.24 5.65 7.07
100 4.71 6.28 7.85 9.42
130 8.16 10.20
150 9.42 11.80
200 15.70

Colour code relating to the grade of steel

SAE 1008 (Si less than 0.03)
SABS S 355 JR (Modified)

Additional information

Dimensions N/A
Size

20, 25, 30, 40, 50, 60, 65, 70, 80, 90, 100, 130, 150, 200
Thickness

2.0mm, 3.0mm, 4.5mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm

You may also like…

  • Round Bar

    Round Bar
    0 out of 5
    Price range: R21,00 through R324,28
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick View

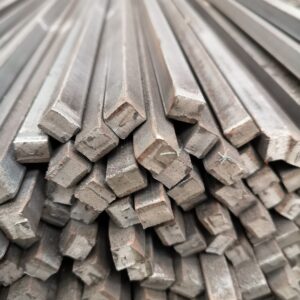

  • Square Bar
