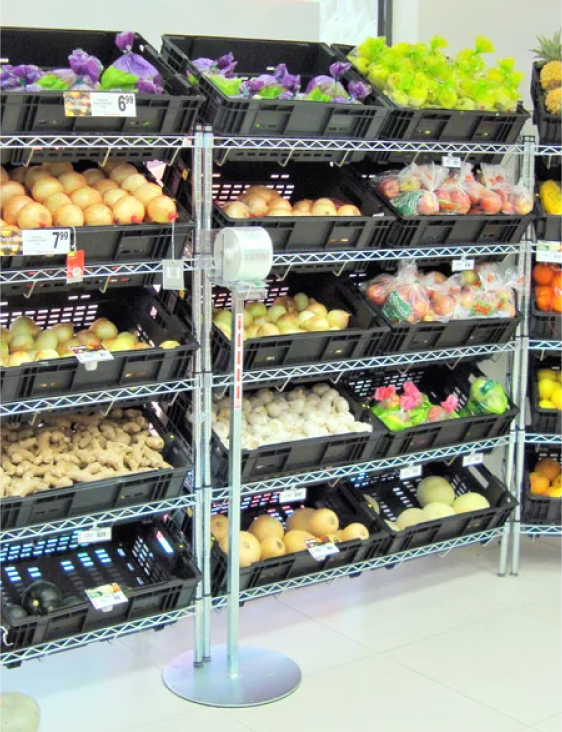

Specifications
How To Assemble Your Euroshelf Unit
• The posts have grooves along the entire length at 25mm intervals.
• Clip the tapered split cone at the required height.
• Once in place, the compatible tapered opening on the shelf corner is locked into position over the cone.
Utility Carts
- Two-tier cart with epoxy coated wire trays
- Two-tier cart with bask et and wire shelf
- Three-tier cart with electro-polished wire trays, ledges and dividers

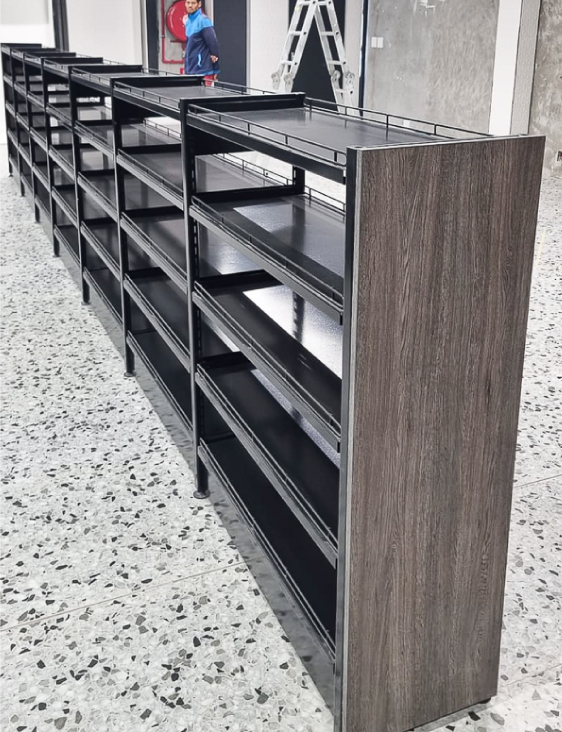

Solid Shelving
Sheet metal Shelves are available in epoxy or galvanized mild steel, and grade 304 stainless steel. The flat surf ace is suitable f or unstable or small loads and contamination through leaking is minimized. These features improve product
management.

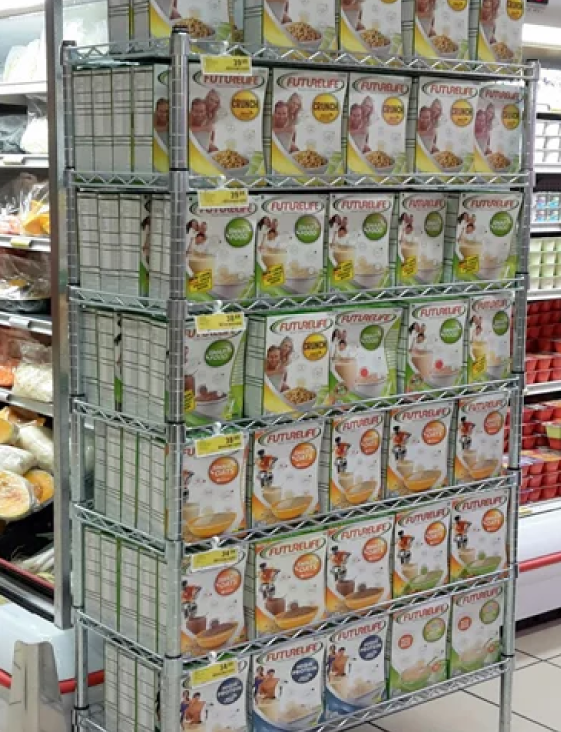

Posts
Standard post lengths vary from 200 x 2200 mm but any post may be trimmed to suit. The post base can be fitted with floor levelers or stem castors. In both cases they are simply knocked in. As with shelves, a selection o f finishes and coatings are available. The 25.4mm (1″) tubular posts are made in cold rolled mild steel or grade 304 stainless steel with a wall thickness o f no less that 1.6mm.

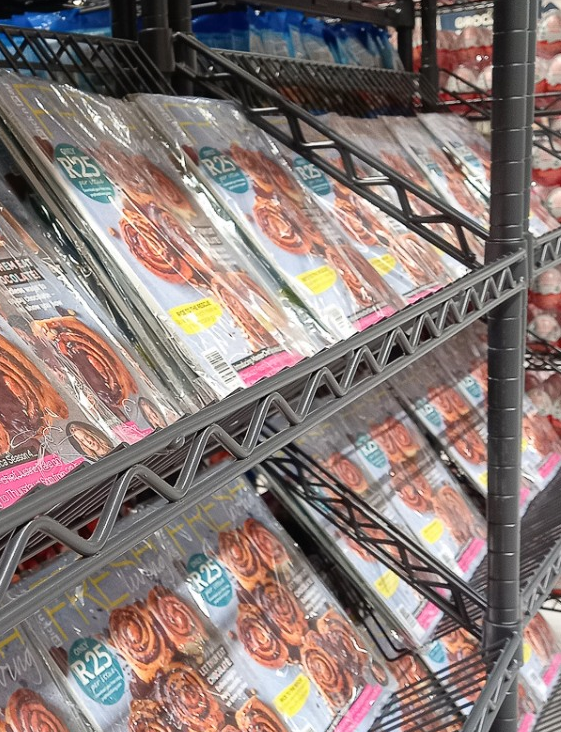

Wire Shelving
Available in shelf or tray options.
Shelf
The truss edging f aces down and eliminates an y restriction when loading or unpacking the shelf.

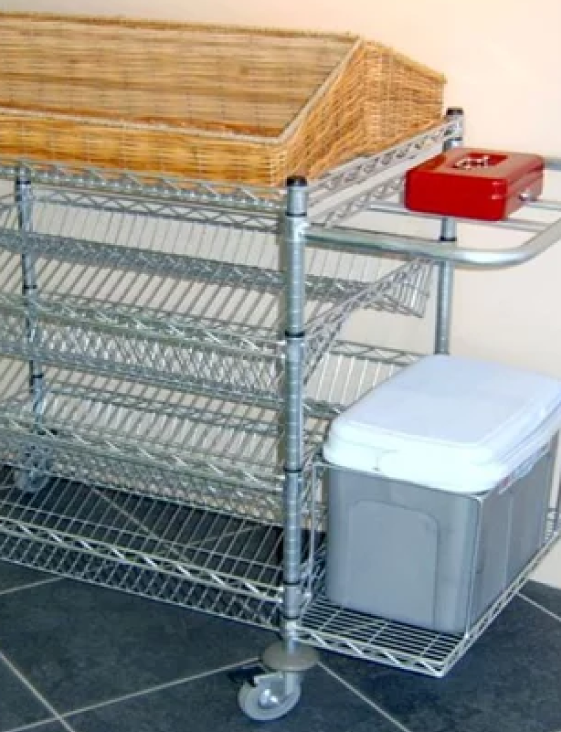

Mobility
The Euroshelf system can be made mobile with the addition of castors. Multi-tier trolleys can be assembled with a choice of sizes, materials and finishes.

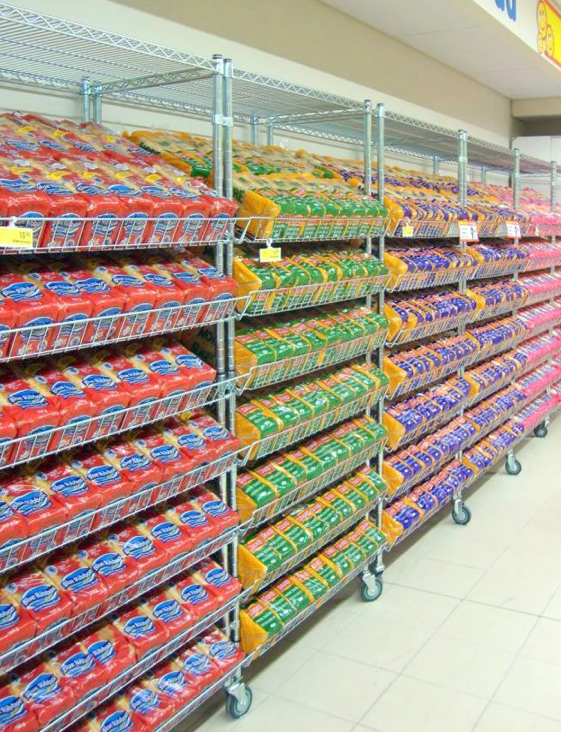

Tray
The truss edging faces up and creates an ideal leading edge to merchandise against.

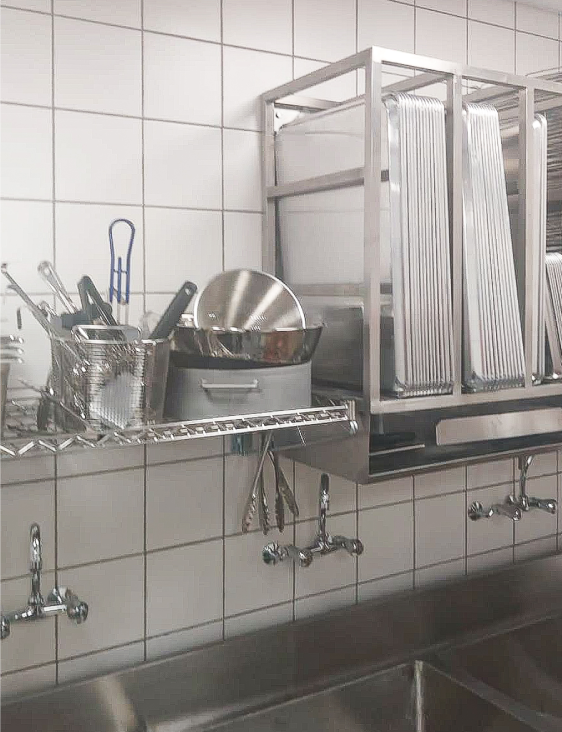

Wall Mounted Shelving
Brackets t o fit 350 and 450mm shelves or trays.

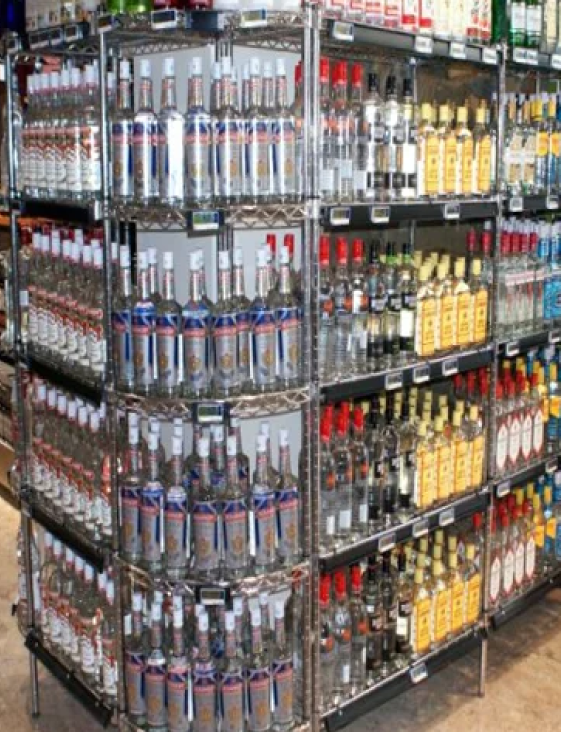

Stainless Steel Shelving
Wire in brushed matt or electropolished. Solid 304 brushed stainless steel.
Castors
A comprehensive range of castors is available. Swivel or rigid, with or without brakes. Donut bumpers pr event injury to staff and damage to property. For any further products standard requirements feel free to contact us.

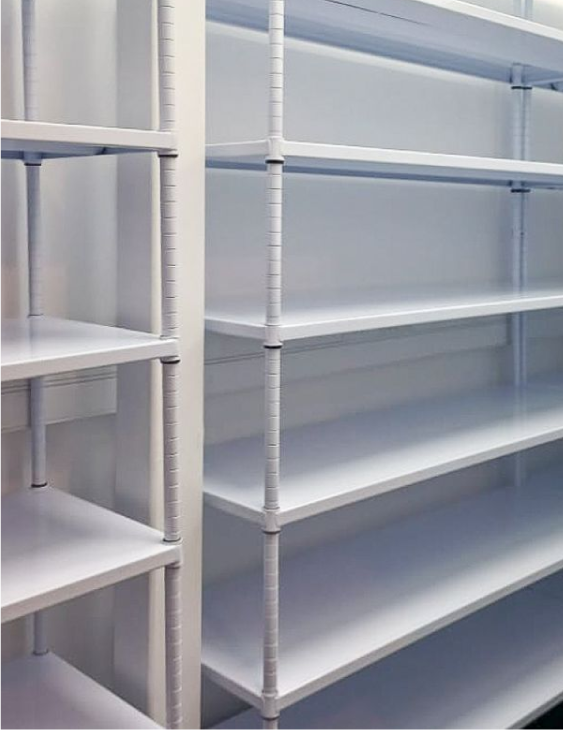

Euroseal Coating
